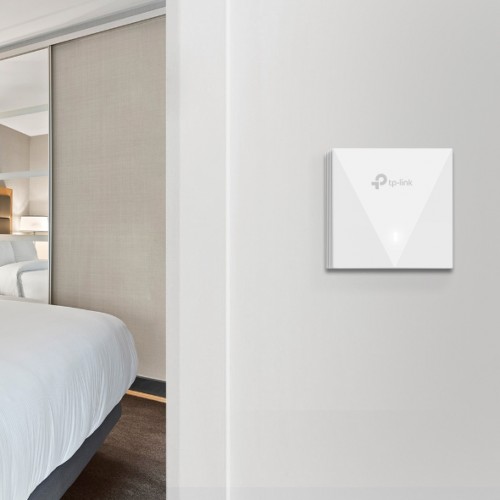

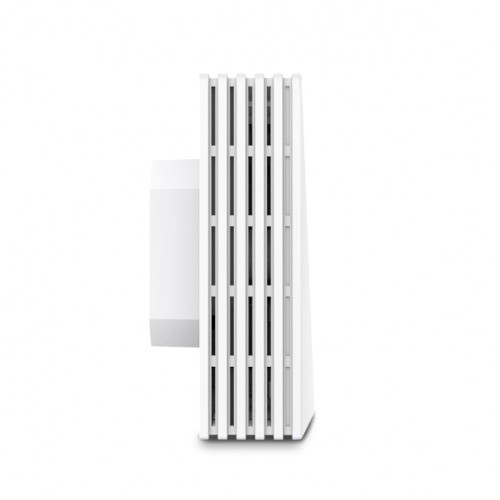

Access Point Ασύρματο AX3000 MU-MIMO Gigabit Wall Mount Wi-Fi 6 EAP650-Wall TP-LINK

 Τεχνικές προδιαγραφές

Χαρακτηριστικά

• HARDWARE FEATURES
• Interface
- Uplink: 1× 10/100/1000 Mbps Ethernet Port
- Downlink: 1× 10/100/1000 Mbps Ethernet Port
- Physical Security Lock No
- Button: Reset, LED
- Power Supply: 802.3af/at PoE
- Power Consumption: EU: 11.5 W

• Antenna:
- 2 Dual-Band Antennas
- 2.4 GHz: 2× 3 dBi
- 5 GHz: 2× 5 dBi
- Mounting: Wall Plate Mounting (Kits included)

• WIRELESS FEATURES
- Maximum Number of Wireless Clients: 100+**
- Concurrent Clients: 100+
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
• Signal Rate
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 574 Mbps
• Wireless Functions
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Seamless Roaming§
- Beamforming
- Rate Limit
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP

• Wireless Security
- Captive Portal Authentication§
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• Transmission Power
- CE:
<20 dBm (2.4GHz, EIRP)
<22 dBm (5GHz band1 & 2, EIRP)
<22 dBm (5GHz band3, EIRP)

• MANAGEMENT
- Omada App: Yes
• Centralized Management:
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

• Package Contents
- AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall
- Installation Guide
- Mounting Kits
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
• Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing

• OTHERS
- Certification: CE, RoHS

• Dimensions: 86 × 86 × 42.6 mm (3.4 × 3.4 × 1.7 in)
