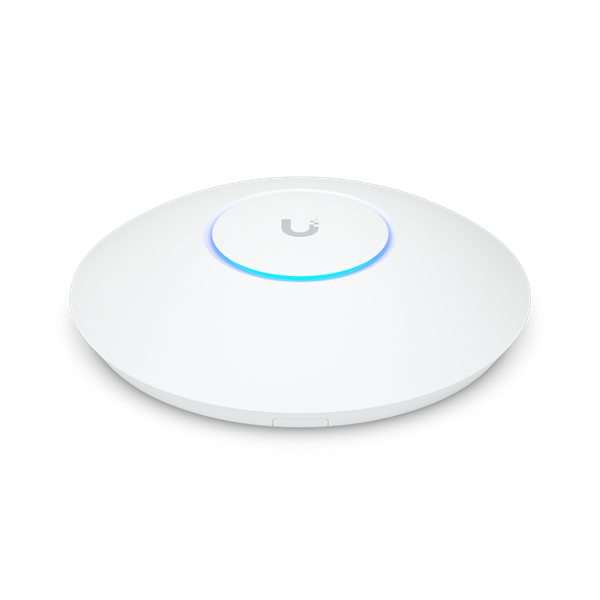

Access Point 2.4+5 GHz 4+5.5 dBi 570+2400 Mbps 1x1Gigabit Wi-Fi 6 U6 Long Range Ubiquiti

 Τεχνικές προδιαγραφές

Specifications

• Mechanical
- Dimensions: Ø220 x 48 mm (Ø8.7 x 1.9")
• Weight:
- Without mount: 800 g (1.8 lb)
- With mount: 930 g (2.1 lb)
- Enclosure material: Polycarbonate
- Mount material: Stainless steel (SUS304)
- Weatherproofing: IP54

• Hardware

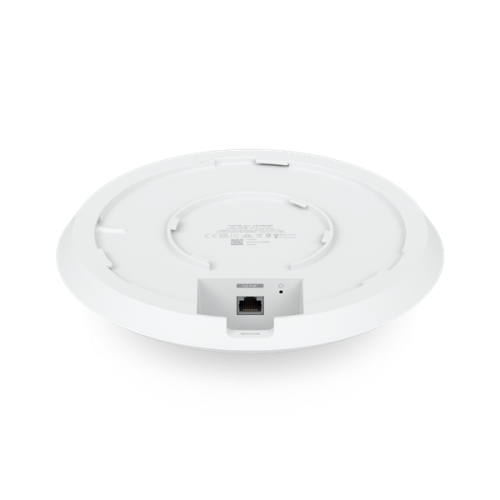

- Networking interface: (1) GbE RJ45 port
- Management interface: Ethernet
- Bluetooth
- Power method: PoE+
- Passive PoE, 48V
- Power supply: UniFi PoE switch
- 48V, 0.5A PoE adapter (Not included)
- Supported voltage range: 44—57V DC
- Max. power consumption: 18.5W

• Max. TX power
- 2.4 GHz: 26 dBm
- 5 GHz: 26 dBm
- 6 GHz: -

• MIMO
- 2.4 GHz: 4 x 4
- 5 GHz: 4 x 4
- 6 GHz: -

• Throughput rate
- 2.4 GHz: 600 Mbps
- 5 GHz: 2400 Mbps
- 6 GHz: -

• Antenna gain
- 2.4 GHz: 4 dBi
- 5 GHz: 5.5 dBi
- 6 GHz: -

• LEDs: White/blue
- Button: Factory reset
- Mounting: Wall, ceiling (Included)
- Operating temperature: -30 to 60° C (-22 to 140° F)
- Operating humidity: 5 to 95% noncondensing

• Software
- WiFi standards: 802.11a/b/g/n/ac/ax
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 350+

• Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

- Application Requirements
- UniFi Network: Version 6.0.34 and later

- Certifications: CE, FCC, IC
